Product Overview

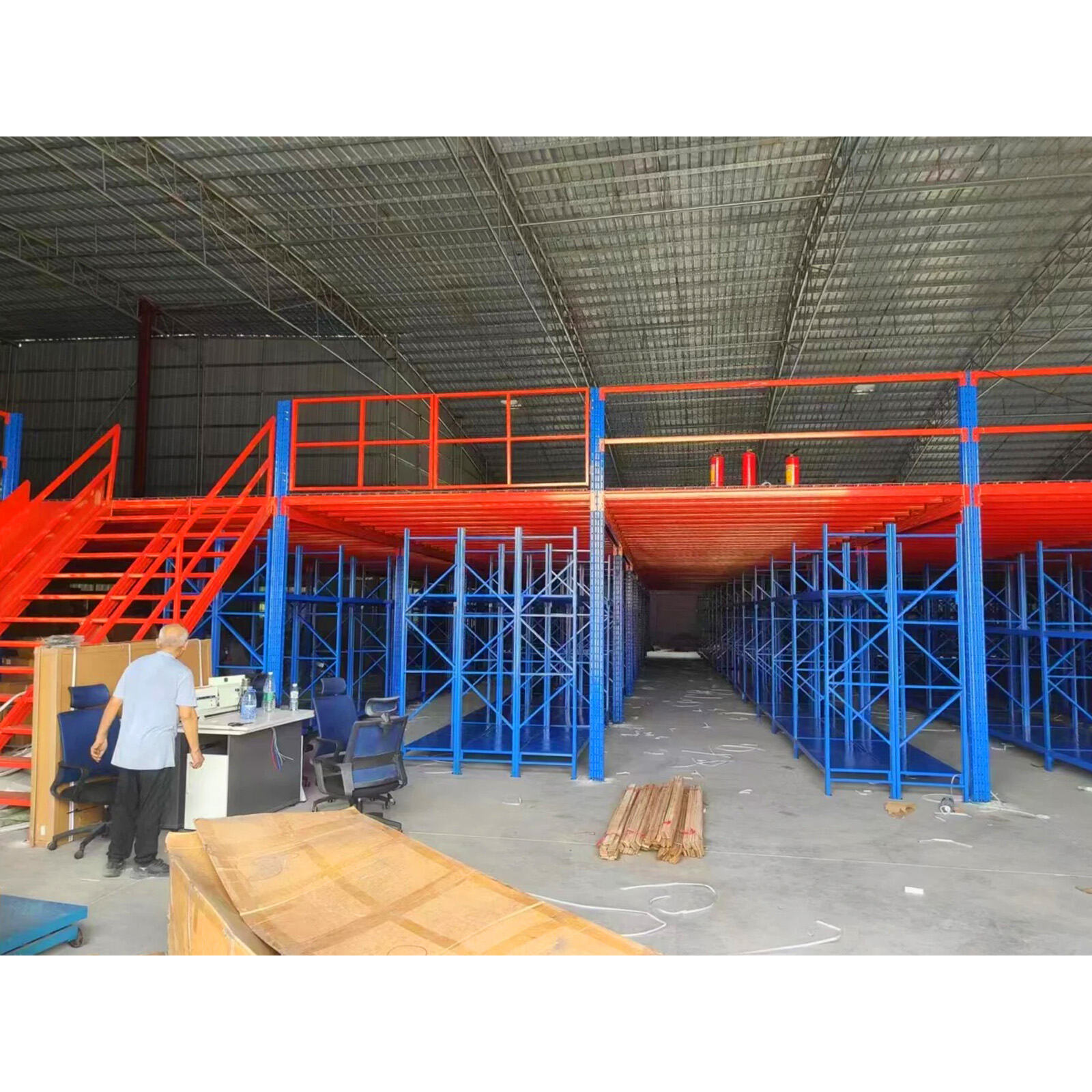

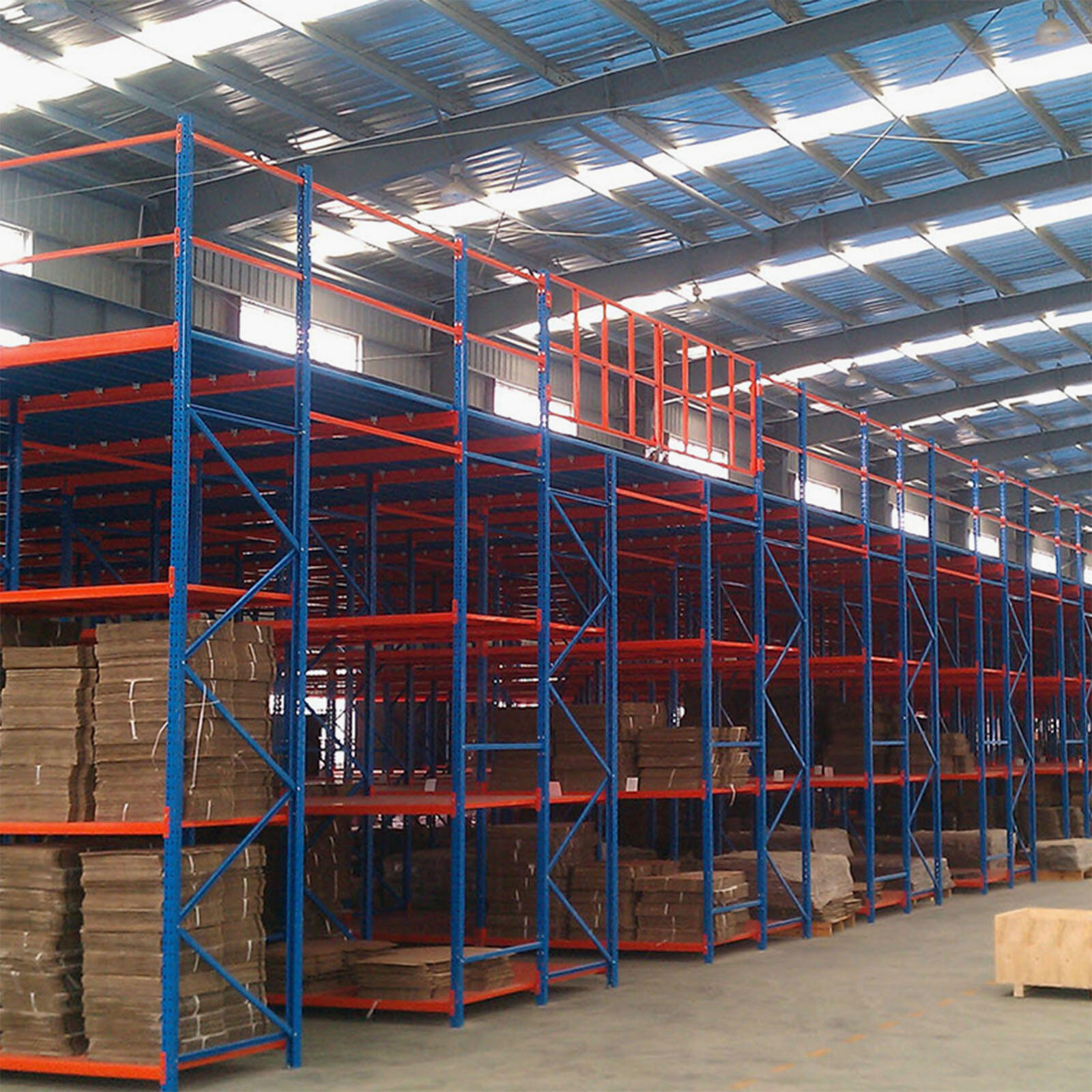

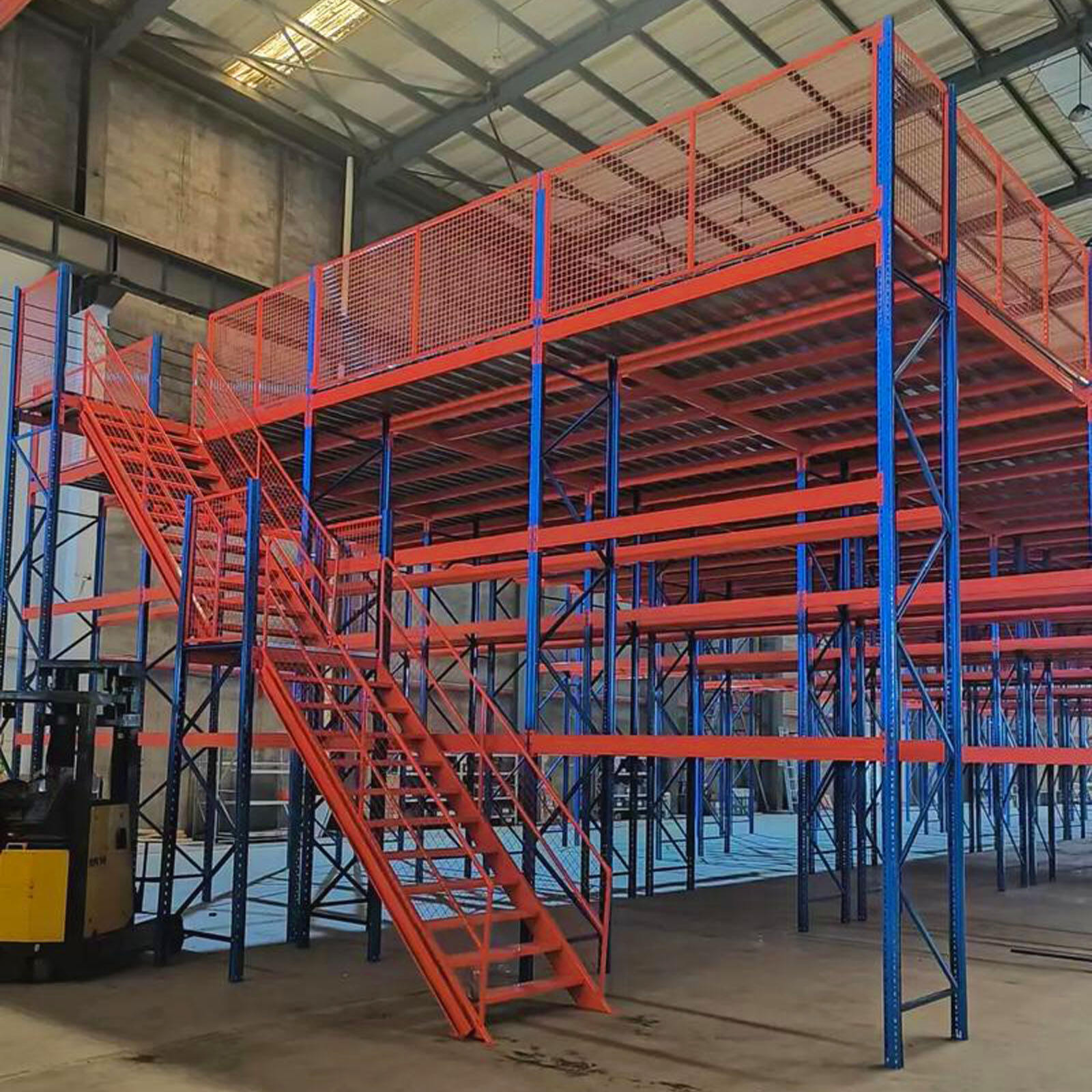

The Multi-Level Pallet Racking Mezzanine System is a space-efficient warehouse storage solution designed to maximize vertical space by combining pallet racking with multi-tier mezzanine floors.
This system uses pallet racking frames as the primary load-bearing structure, creating one or more elevated working or storage levels without the need for independent steel structures. It is ideal for warehouses with high ceilings that require increased storage density while maintaining flexible pallet access.
Key Features
Multi-Level Storage Design
Creates additional storage levels above pallet racking to significantly increase usable warehouse space.

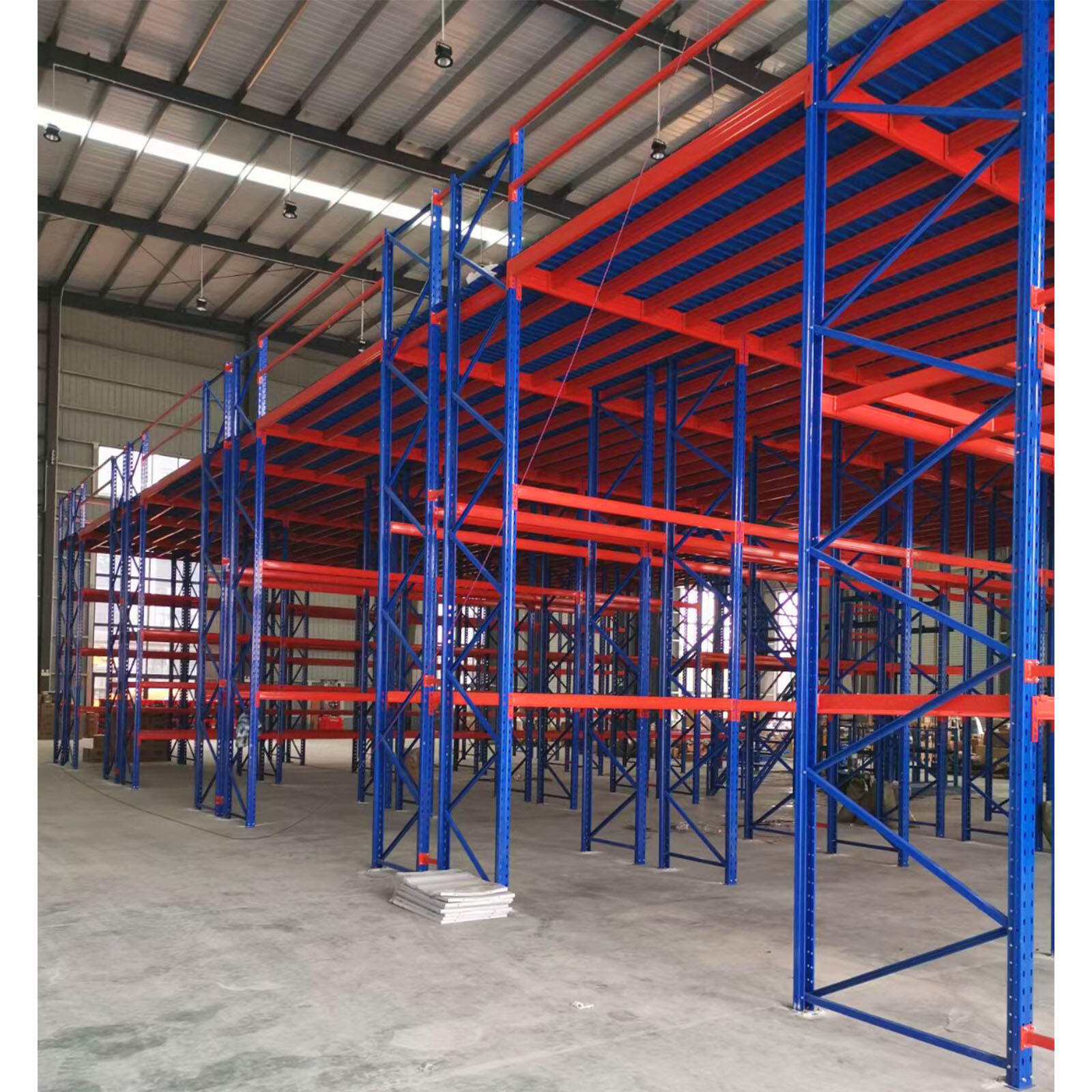

Racking-Based Load Structure
Utilizes pallet racking columns as the main support, eliminating the need for separate steel mezzanine structures.
High Load Capacity
Designed to support heavy palletized goods with stable structural performance.
Modular & Expandable
Layout, height, and levels can be adjusted or expanded based on warehouse development needs.
Integrated Safety System

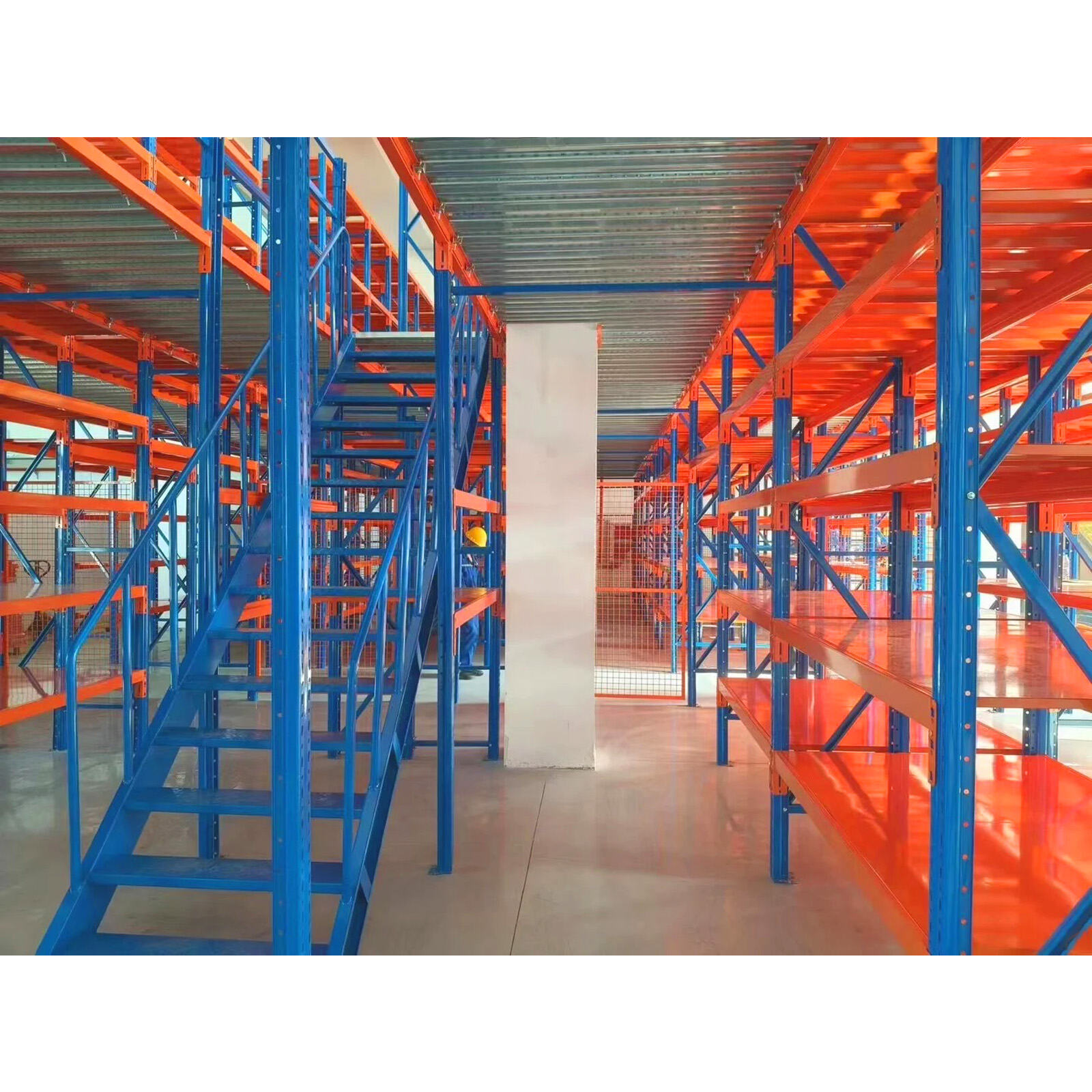

Includes guardrails, staircases, and safety gates for secure operation on upper levels.
Typical Applications
Logistics and distribution centers
Manufacturing warehouses
Spare parts and component storage
E-commerce fulfillment centers
High SKU storage environments
Technical Specifications
Item |
Description |
System Type |
Shelving Supported Mezzanine Floor |
Load Capacity |
Customized according to design requirements |
Floor Height |
Customized |
Decking Options |
Steel plate / anti-slip steel decking |
Structure Material |
High-quality structural steel |
Surface Treatment |
Powder coated |
Application |
Warehouse storage, manual picking areas |
Customization Options
Storage layout and aisle width
Number of mezzanine levels
Decking material selection
Guardrail and safety configurations
Color and surface treatment
Integration with picking or conveyor systems
Installation & Support
Detailed layout drawings and installation instructions provided
Remote installation guidance available
Long-term technical support for overseas projects
Minimum Order Quantity
Project-based (no fixed MOQ)
Frequently Asked Questions
Q1: What information is needed to design this system?
A1: Warehouse dimensions, pallet size, load weight, storage requirements, and workflow.
Q2: Is this system suitable for heavy-duty pallet storage?
A2: Yes, the system is engineered based on pallet load requirements.
Q3: Can the mezzanine levels be expanded in the future?
A3: Yes, the modular design allows future expansion.
Q4: Do you provide customized designs?
A4: Yes, all mezzanine systems are customized based on project needs.
Q5: How long is the production lead time?
A5: Typically 15–30 days depending on project scale.
Q6: Do you provide installation support?
A6: Yes, we offer installation guidance and technical support.
