Product Overview

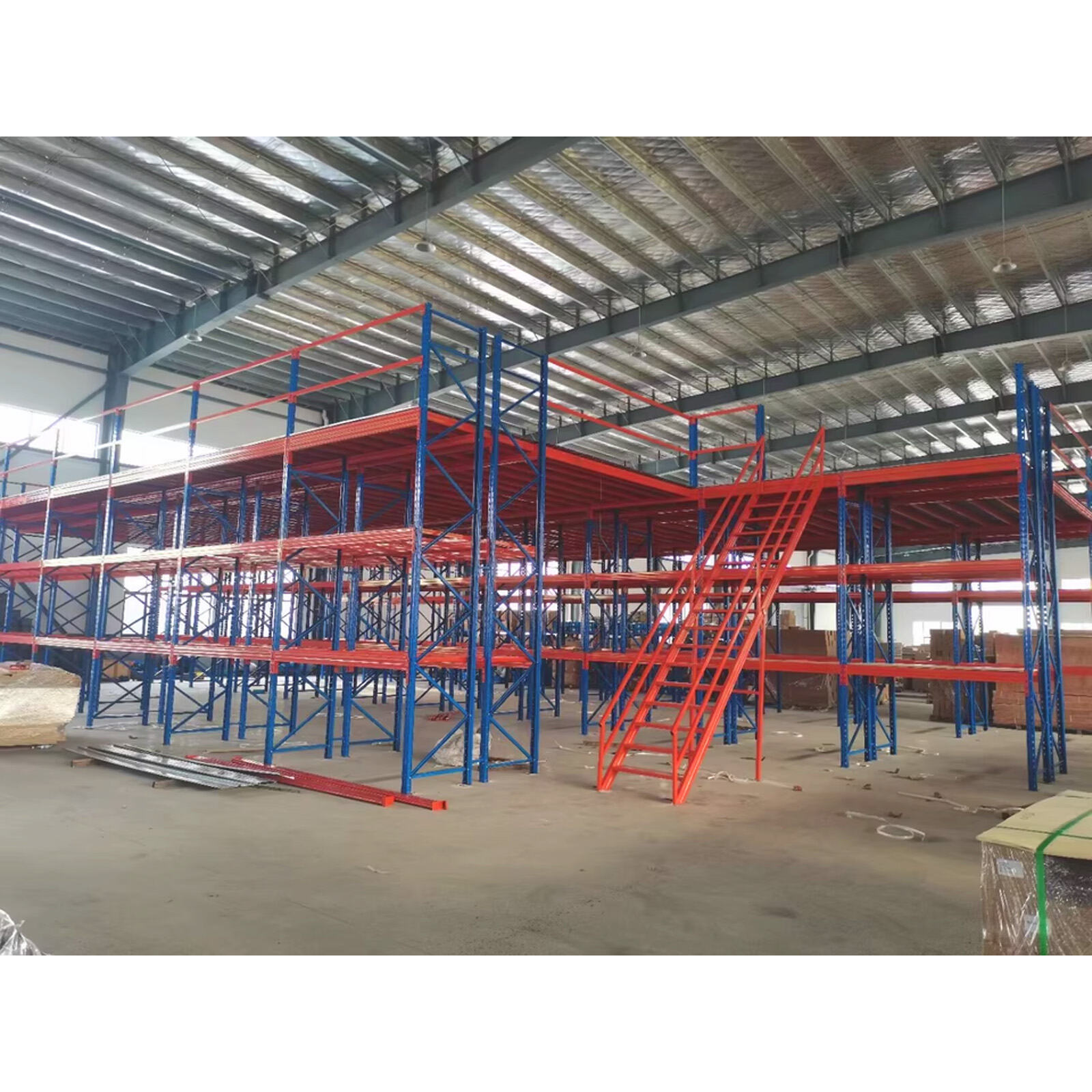

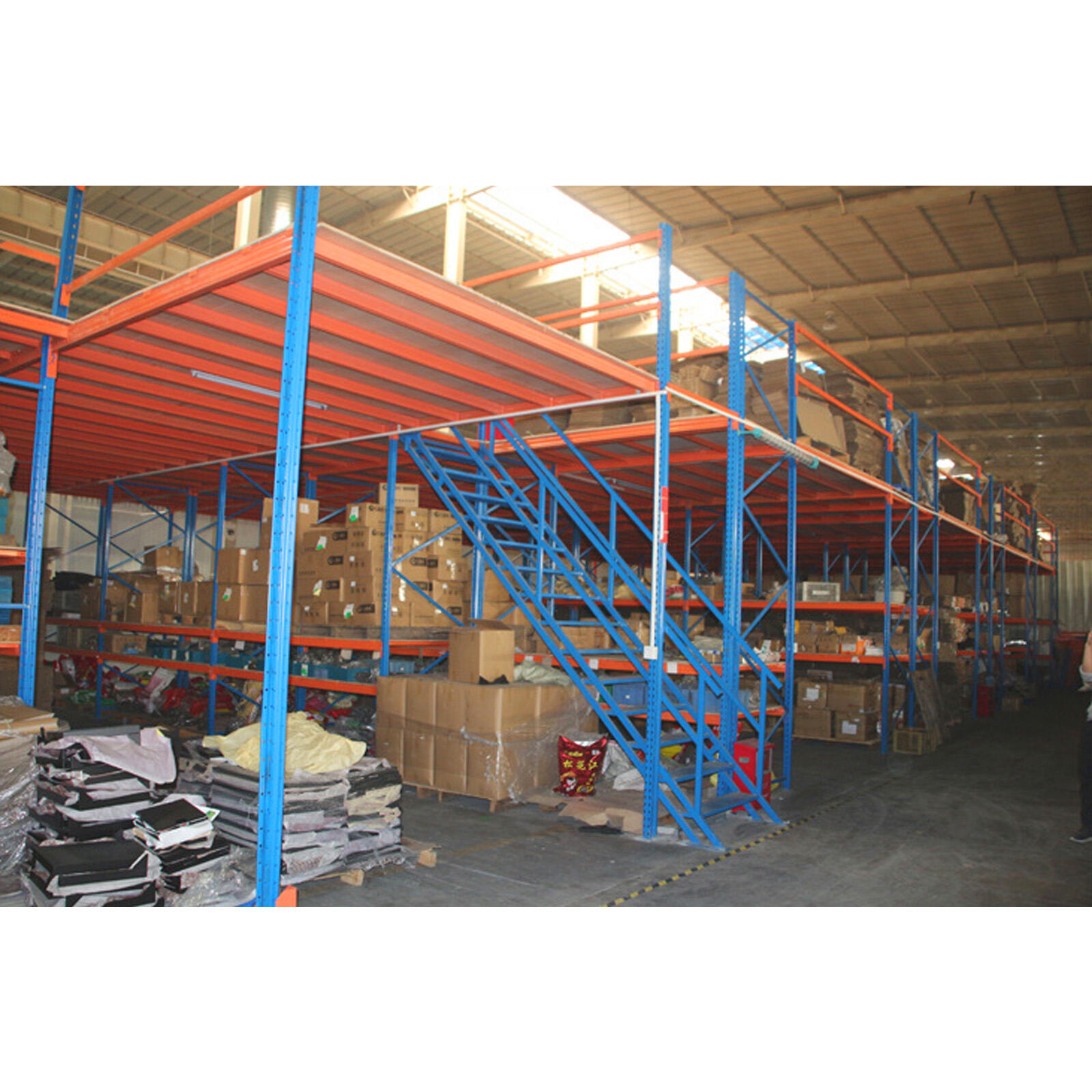

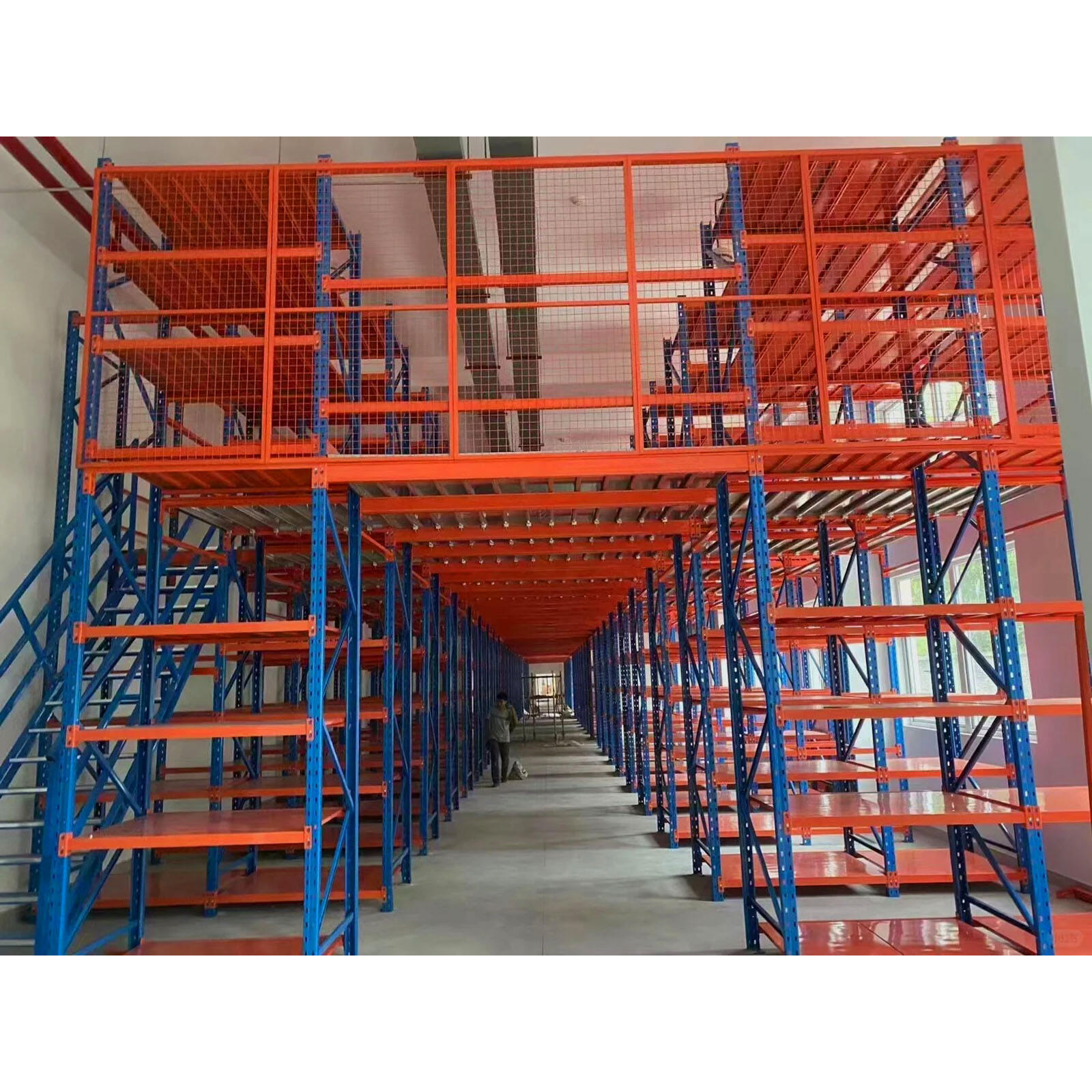

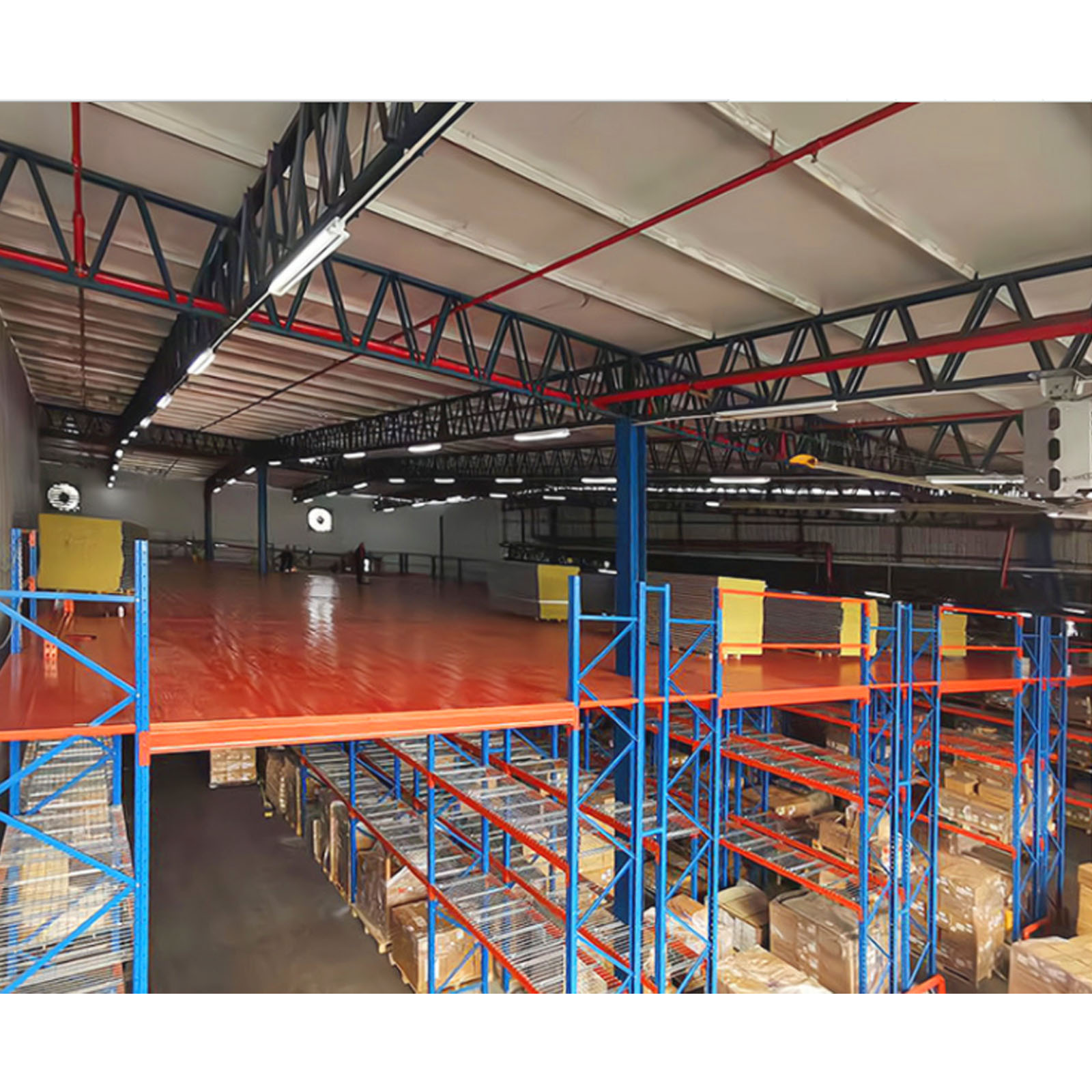

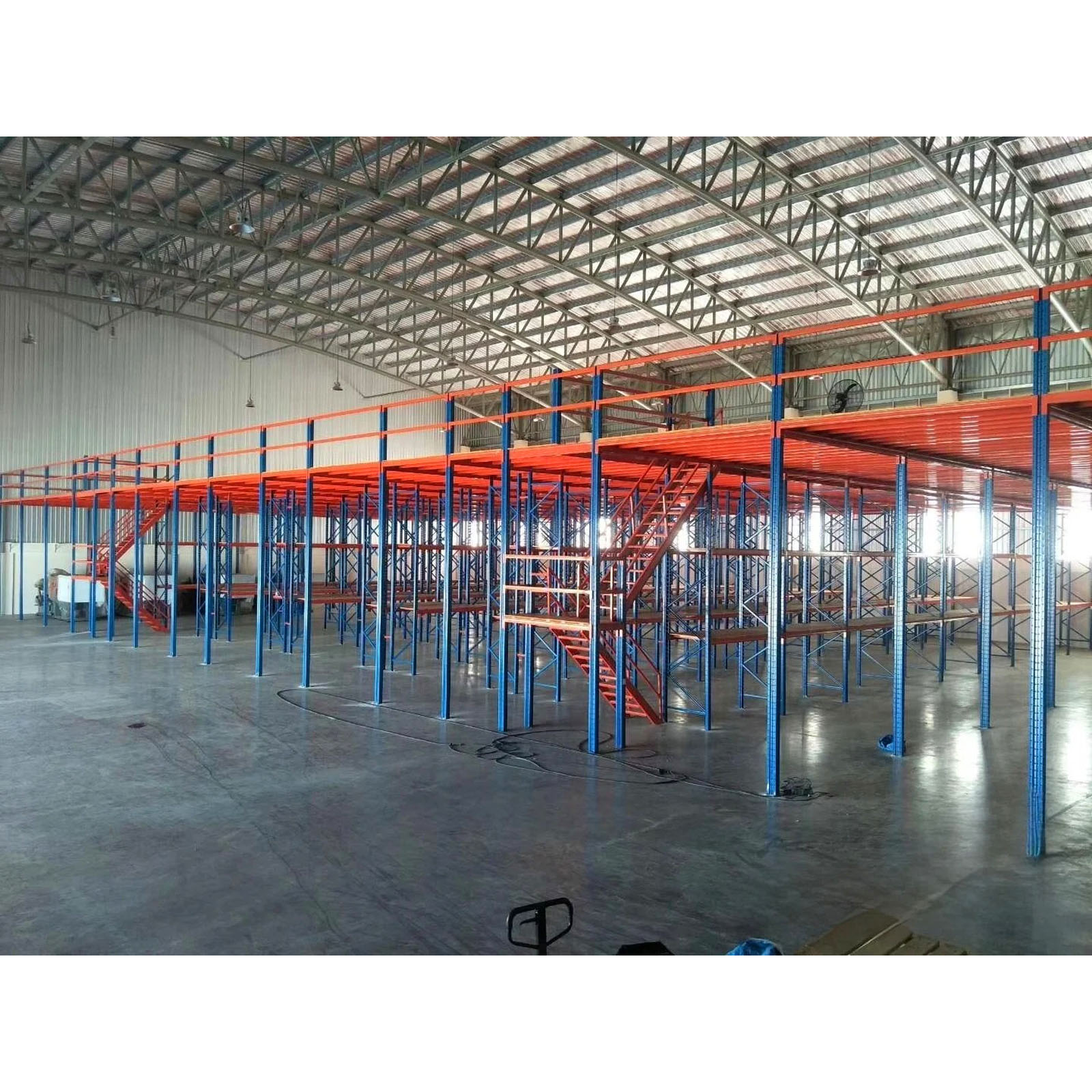

The Mezzanine Racking System is an integrated warehouse storage solution that combines pallet racking structures with mezzanine platforms to maximize vertical space utilization.
By creating one or multiple elevated levels above the racking system, it provides additional storage and working areas without expanding the warehouse footprint.
This system is suitable for warehouses that require both pallet storage and efficient order picking or manual handling operations.
This solution is ideal for warehouses requiring both pallet storage and additional working or picking levels, without expanding the building footprint.
Key Features
Integrated racking and mezzanine platform system
Maximizes vertical warehouse space
Suitable for pallet storage and manual picking
Project-based design according to warehouse layout and workflow
Industrial-grade structure for long-term use
Technical Parameters
| Item | Specification |
|---|---|
| Structure Type | Racking Supported Mezzanine |
| Load Capacity | 300–1000 kg/m² (customizable) |
| Pallet Load | 500–1500 kg per pallet |
| Levels | 2–3 levels |
| Flooring Options | Steel decking |
| Connection Type | Welded main structure with bolted accessories |
| Surface Treatment | Powder coating |
Application Scenarios
Logistics and distribution centers
E-commerce fulfillment warehouses
Manufacturing storage areas
Spare parts and component storage
Manual picking and sorting zones
Minimum Order Quantity (MOQ)
MOQ: 1 set / Project-based
All mezzanine systems are designed and manufactured on a project basis.
Layout, load capacity and structural configuration are customized according to warehouse conditions and operational requirements.
